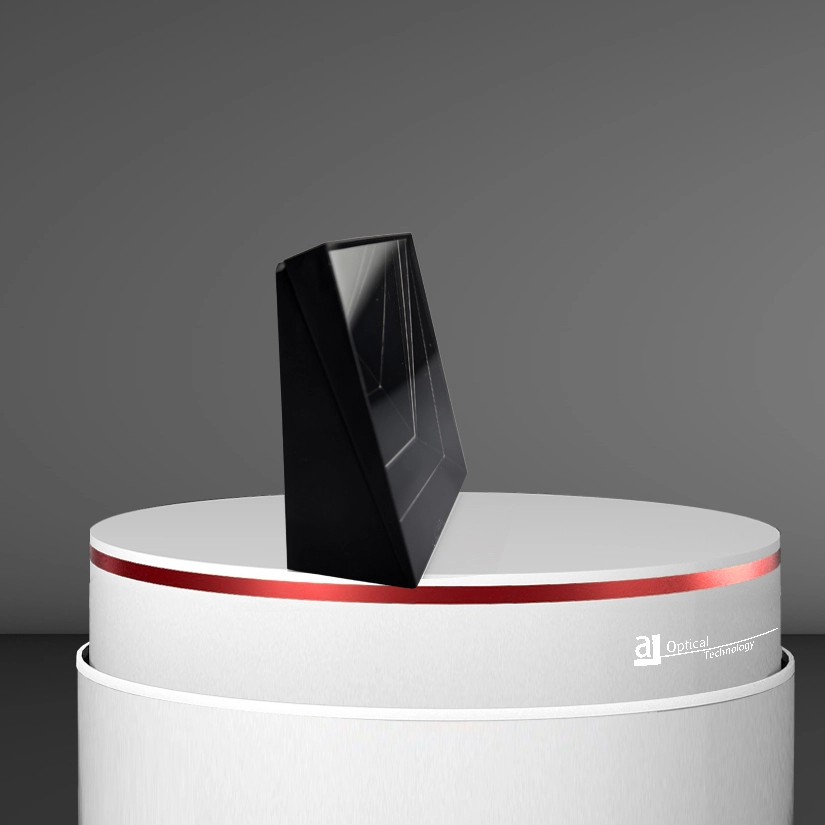

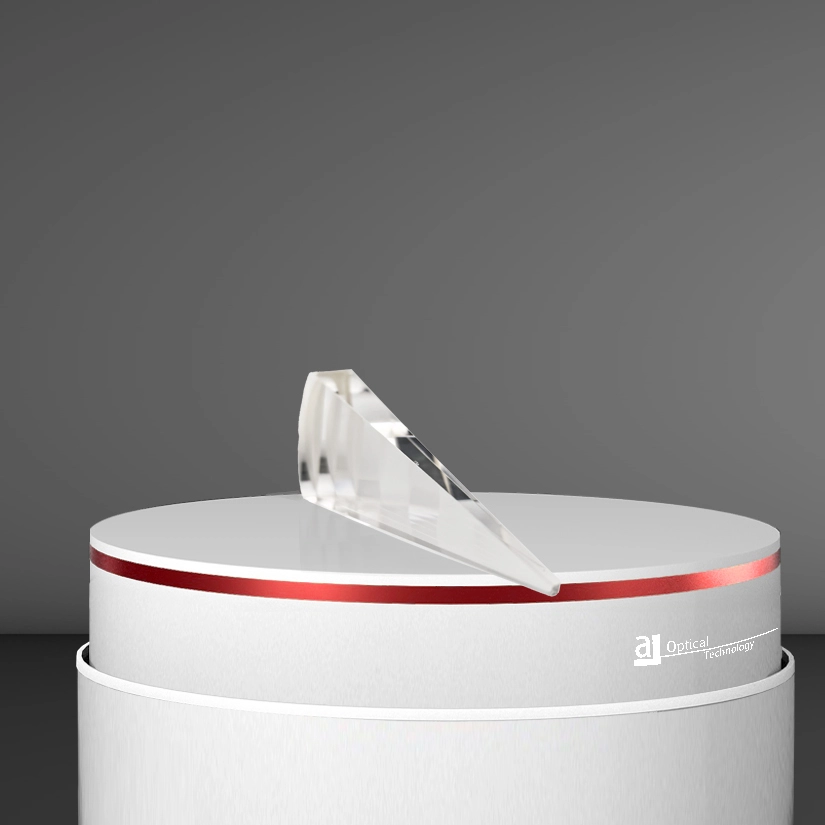

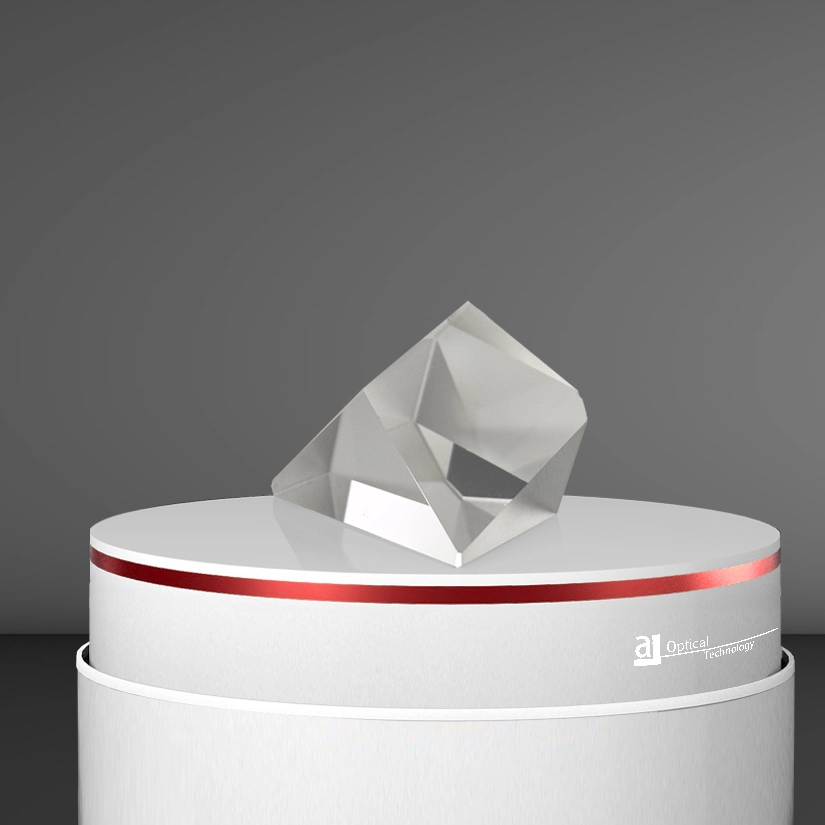

A prism is a transparent object surrounded by two intersecting but not parallel planes, which is mainly used for splitting light or dispersing light beams. A prism can be used to bend light at a specific Angle. Prism products include: right Angle prism, isosceles ridge prism, pentagonal prism, parallel prism, Schmidt ridge prism, wedge prism, shaped prism, Dowell prism, splitting prism and other multi-faceted, polygonal prism.
The prism, as a precise solid glass optical element, is carefully frosted and polished to show a specific geometry and excellent optical properties. Its classification and function are mainly determined by parameters such as Angle, position, number and configuration of working surfaces.
Dispersion Applications: Prisms can decompose white light into its constituent spectral colors. This property is fully utilized in refractometers and spectral analysis components.
Optical Path Control: In various optical systems, prisms achieve precise adjustment of the optical path through their refractive surfaces, enabling compact system layouts while altering the rotational or homologous properties of images. Such applications are widely found in telescopes, magnifiers, and measuring instruments.
Substitution for Mirrors: Prisms can simulate the reflection effect of plane mirrors in optical systems, achieving light reflection. In practical operations, using prisms to replace mirror components offers significant advantages. Prisms can not only refract and fold light through their refractive surfaces but also change the homologous properties of images through appropriate geometric designs. Compared to using multiple mirrors to achieve similar effects, the use of a single prism can significantly reduce system calibration errors, improve accuracy, and minimize system complexity and size.
The processing of optical prisms includes three stages: shaping, polishing, and coating. Shaping involves cutting and heating glass rods, polishing improves surface quality, and coating enhances reflection and transmission properties. Precision equipment and technology are crucial.

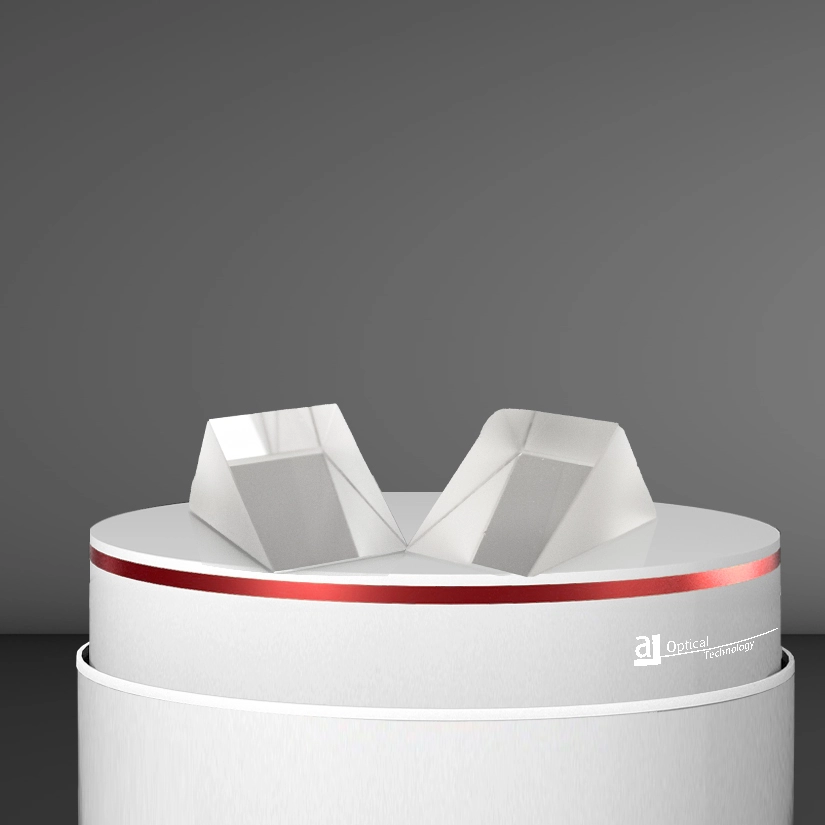

Right-angle prisms are used for beam steering; roof prisms for image inversion; Amici prisms for dispersion in spectrometers; rhomboid prisms for beam displacement; and generalized rhomboid prisms for interpupillary distance matching in ophthalmic instruments. These prisms are widely used in spectrometers, telescopes, microscopes, and medical instruments.
With technological advancements, the application prospects of prisms in various fields are expanding. Future trends include high performance, improving materials and processes to enhance transmittance and reduce dispersion and aberrations; miniaturization and integration, using micro-nano technology and integrated optics for compact and lightweight optical systems; intelligence, leveraging AI and machine learning for efficient design and manufacturing; and multifunctionality, combining with other optical elements to develop new multifunctional prisms. In summary, as a crucial optical component, prisms will have even broader performance and application prospects in the future.
If you would like to build your own precision optical products or request a quote, please click one of the two buttons below. Otherwise, please fill out the form below with any questions or concerns.
