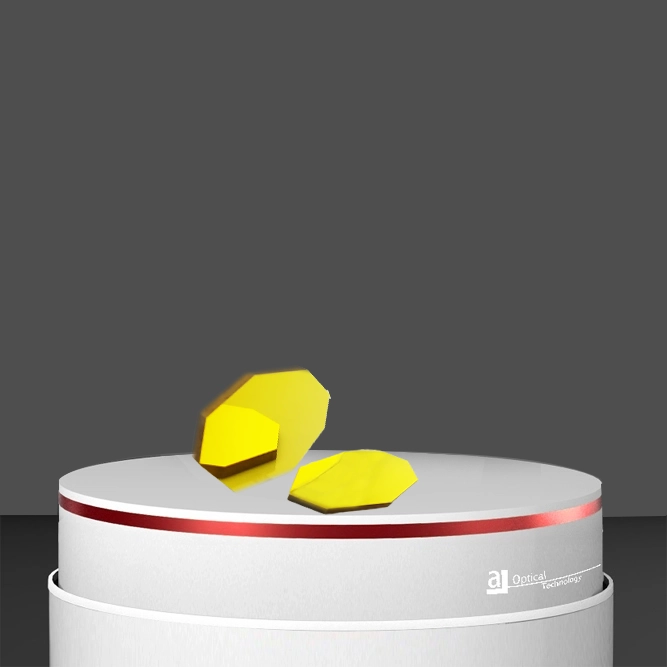

Scanning Mirror

Galvanometers, also known as galvanometric scanners, are specialized oscillating motors that differ from conventional rotary motors. Their rotors cannot rotate continuously but instead deflect proportionally to the input current - similar to how galvanometers function in ammeters. This current-to-angle proportionality gives them their alternative name: galvanometric scanners.

 SEND REQUEST

Products

Overview of Scanning Mirror

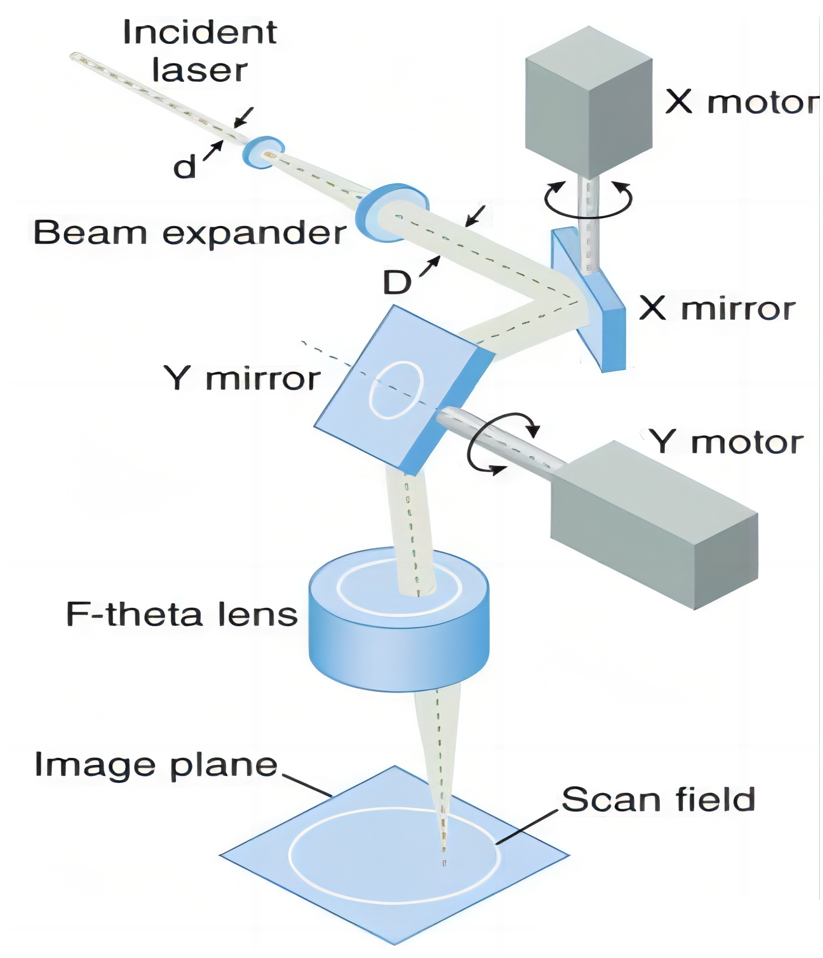

The Scanning mirror have found mature applications in laser scanning systems. A laser galvanometer scanner (Galvo scanner) consists of three core components: an optical scanning head, electronic drive amplifier, and optical mirror assembly. By utilizing two galvanometer mirrors to reflect the laser beam, it achieves precise XY-plane motion control. This specialized electromechanical device is specifically designed for laser processing applications.

Features of Scanning Mirror

Thickness & Axis: Rotation axis passes through mirror's internal structure, not surface.

Angle & Coverage: Must cover full aperture at max angle, may cause off-center spots.

Rotation Optimization: Z-axis pre-rotation affects X-mirror size; optimal angle saves space.

XY Spacing: Balanced distance prevents beam blockage (X→Y→X path) and oversizing.

Beam & Shape: Mirror contour matches beam profile (set by optics/angles).

Coatings: Single/double-sided options based on application.

Advantages of Scanning Mirror

Fastest motor speeds in the industry, delivering low drift and long-term stability

Superior precision and accuracy that ensure high-quality scanning output

Extensive range of aperture sizes and mirror coatings

Compact models with small footprint ensure easy integration for small spaces

Broad range of product offerings from high-performance to cost-effective

Specification of Scanning Mirror

LXW Tolerance: +0/-0.1

Clear Aperture: >90%

Thickness Tolerance:+/-0.1mm

Surface Quality:40/20

Surface Figure: lambda/425mm²(at)632.8nm

Coating

266nm	Fused silica	Aluminum Reflector Coating
10.6um	Si	Gold Reflector Coatings

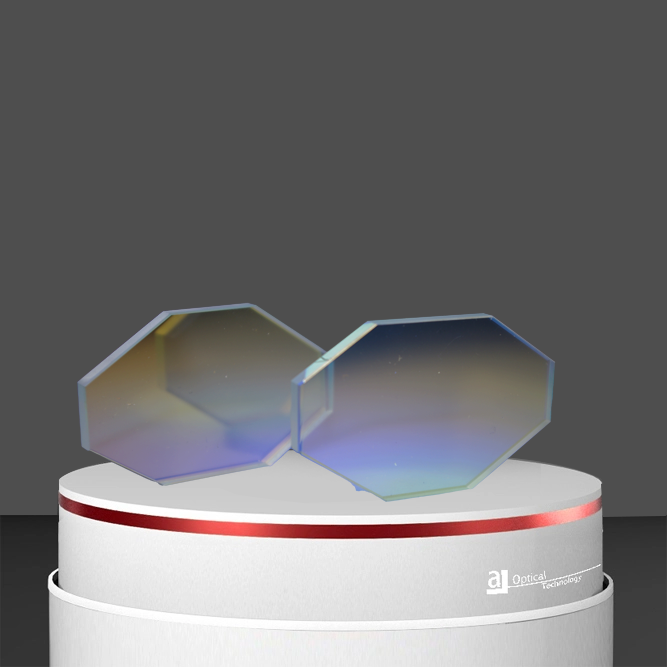

1064nm/650nm/532nm	Si/BK7	Dielectric Reflector Coating
